Precision hoe
Treffler Präzisions-Hackgerät im Frontanbau

3-beam hoe. Simple setup with precise row guidance.

Cuts to control weeds between the plant rows. Scatters within the row. A simple setup and particularly precise row guidance over furrows in the ground.

Contact an agricultural adviser!
Find a specialist dealer!
That’s the Treffler difference

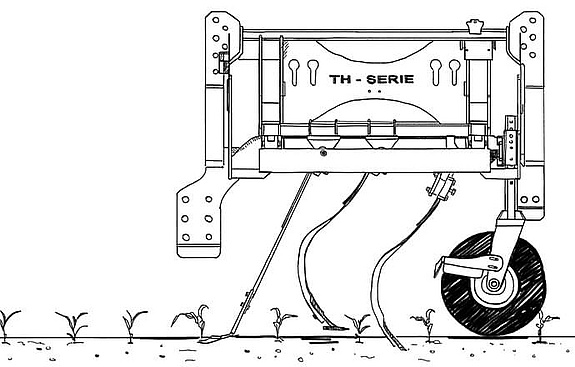

Treffler Präzisions-Hackgerät im 3-balkigem Aufbau

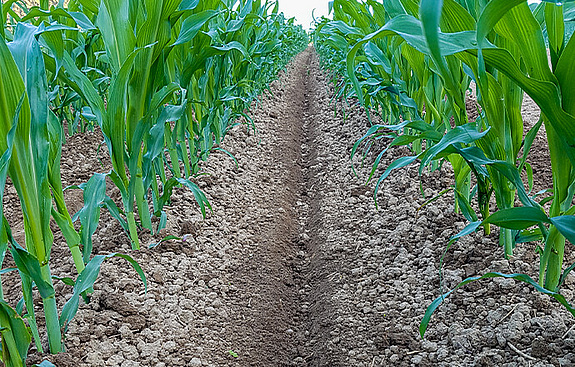

Treffler Präzisions-Hackgerät Spurführung im hohen Bestand

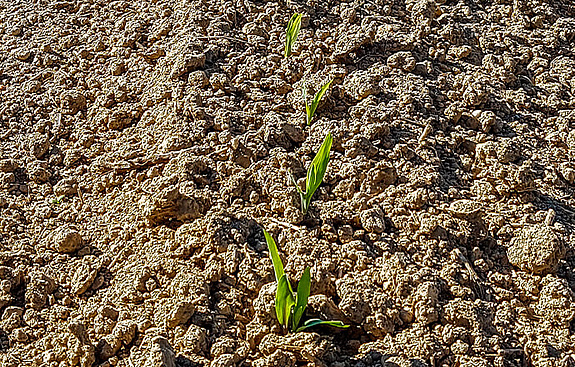

Treffler Präzisions-Hackgerät Spurführung im frühen Stadium

Precise row guidance through furrows in the soil

The core principle of the 3-beam hoe is row guidance of the hoe in soil furrows created when sowing. The crucial factor here is that the tine has no lateral play. The patented tine renowned from the precision spring-tooth-cultivator is used to meet these requirements.

Characteristics and working method

For successful weed control.

Lightweight design

The filigree yet stable frame construction makes it suitable for use with small, lightweight tractors. This keeps soil compression to a minimum.

The right tools for every application

Different crops and soils require different tools or combinations of tools. Arrange the right tools on the hoe’s 3 beams.

Blind hoeing is possible

Because the furrows to control the hoe are created when sowing, it is possible to hoe pre-emergence (“blind hoeing”).

Inexpensive row guidance

The furrows created during sowing are used to guide the hoe, meaning that more expensive camera technology for track recognition is not required.

Send request!
View brochure!
Your individual hoe

The Treffler precision hoe

Treffler Agrartechnik Präzisions-Hackgerät mit Sätechnik
Treffler Agrartechnik Präzisions-Hackgerät hacken
Treffler Agrartechnik Präzisions-Hackgerät in Soja
Treffler Agrartechnik Präzisions-Hackgerät hacken im frühen Stadium
Send request!

Creating track guidance furrows

The Treffler spring-tooth cultivator tine is mounted in the middle between the sowing units. This patented tine cannot deviate sideways and therefore delivers a precise furrow.

Treffler Präzisions-Hackgerät Spurführungsfurchen
Treffler Präzisions-Hackgerät Blindhacken

Blind hoeing

Hoeing and scattering the seed row for corn or soy pre-emergence is a very effective means of weed control. The next wave of weeds can then be harrowed out of the row precisely using the Treffler harrow.

Treffler Präzisions-Hackgerät Hacken im Bestand

Hoeing in stock

Using shallow ridgers to scatter weeds in the crop row delivers a high degree of weed control.

Treffler Präzisions-Hackgerät Hacken in hohem Bestand

Hoeing in tall stocks

The aim of the last pass is to ridge the crops. It is possible during this to travel up to 15 km/h through the stable furrow.

The hoe’s 3-beam frame offers maximum freedom for tool positions and combinations. The first beam has the guide tine as standard.

The implement is supplied with front/rear hitch as standard for maximum flexibility.

Treffler Präzisions-Hackgerät Hacken in hohem Bestand

The large support wheels with 18 x 8.5 6 PR dimensions provide depth guidance for the hoe and the tools. The working depth is adjusted as standard by means of a series of holes. An optional crank is available for assistance.

Treffler Präzisions-Hackgerät Stützrad mit Lochkulisse
Treffler Präzisions-Hackgerät Stützrad mit Kurbel

Anything is possible. From narrow grain gaps to pumpkins with a 1 meter row gap or more: they can all be achieved.



Even though it is 70 cm long, the patented tine is unable to deviate to the side thanks to it 60 mm-wide flat-steel spring system. What’s more, the pivot point approx. 15 cm in front of the tine tip ensures even depth guidance, similar to a parallelogram.



Treffler Präzisions-Hackgerät Zinken

Shares

Choose to suit your requirements

Different applications require different tools. Make your choice based on your own application needs.



Treffler Präzisions-Federzahnegge Schnabelschar

Duck-beak share

  • 45 mm wide
  • Good crumbling properties
  • Full-coverage soil break-up
  • Self-sharpening
Treffler Präzisions-Federzahnegge Gänsefußschar

Sweep

  • 160 mm-wide share
  • 3 mm Hardox
Treffler Präzisions-Federzahnegge Sichelschar

Sickle share

  • 45 mm wide
  • Good crumbling properties
  • Good at combing out perennial weeds
  • Self-sharpening
Treffler Präzisions-Federzahnegge Kultischar

Cultivator share

  • 45 mm wide
  • Good crumbling properties
  • Good at combing out perennial weeds

The tool for scattering weeds at early stages of development.



Treffler Präzisions-Hackgerät Flachhäufler

For full-coverage undercutting of weeds between rows with a slight hilling effect in the row.

Treffler Präzisions-Hackgerät Schleppmesser

The tine for the best hoeing results as close as possible to the row or for turning over then scattering large weeds.



Treffler Präzisions-Hackgerät Torsionszinken

The hoe can be equipped with section control to prevent overlaps at the headland.



Treffler Präzisions-Hackgerät Sektionsaushebung

Crop protection discs are available to protect the crop at the early stages and later in the season when the tempo increases.



Treffler Präzisions-Hackgerät Kulturschutzscheibe
TH 320/50
9.84 ft/118.11 in
Transport width:
9.84 ft/118.11 in
Folding:
no
TH 600/50
19.69 ft/236.22 in
Transport width:
9.84 ft/118.11 in
Folding:
yes
TH 320/75
9.84 ft/118.11 in
Transport width:
9.84 ft/118.11 in
Folding:
no
TH 470/75
14.76 ft/177.17 in
Transport width:
9.84 ft/118.11 in
Folding:
yes
TH 620/75
19.69 ft/236.22 in
Transport width:
9.84 ft/118.11 in
Folding:
yes
Precision tine harrow

The perfect addition to the hoe.
